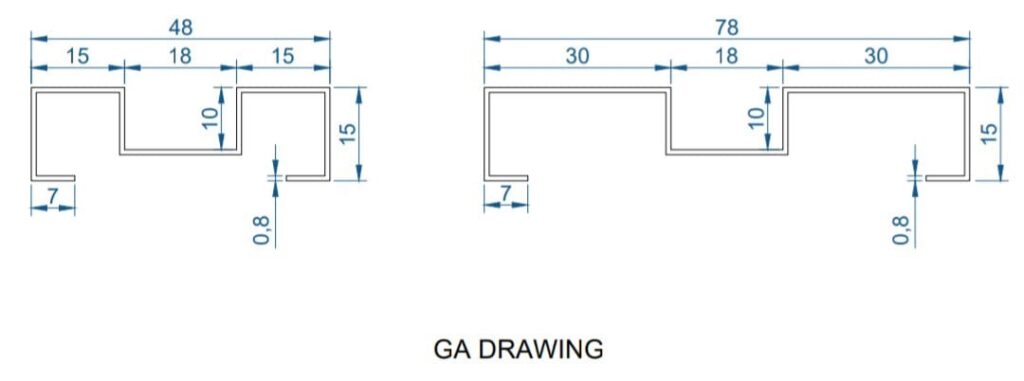

Panel Roll Forming Machine
Main Roll Forming Machine
| Main roll forming machine | |
|---|---|
| oNumber of forming stands | 14 stand |
| o Outer diameter of shaft | 66mm |
| o Main motor power | 5 HP |
| o The forming speed | 10-12 M/min |
| o Roller Material | EN-31 |
| o Motor | ABB make |
| o Voltage | 440V-50HZ – 3 Phase |
| o Cutting system | Hydraulic, automatic cutting |
| o Weight of coil | 2000kg max |
| o Length of the machine | 18 ft |
| o Weight of machine Approx | 3.5 ton approx. |
The Equipment Includes:
- De-coiler (Hydraulic)
- Main roll forming machine (2 profile)(14 stand)
o Hydraulic post cutoff unit ( Automatic)
o Electrical control system
o Hydraulic power pack
Technical Specifications and Details
| Technical specifications and details | |
|---|---|
| De-coiler | hydraulic ( Automatic) |
| Weight of the machine | 1000 kg |
| Capacity | 2000 kg |
| max Coil id | 510 mm |
| Max coil width can be loaded | 500 mm |
| Min coil width can be loaded | 50 mm |
Hydraulic Power Pack
Tank fabricated capacity: 90 ltr.
Motor 2 HP ,3 phase, 1440 RPM, flange, ABB
Direction control valve : NG-06-24v-DC
Pump : 1P series 27 LPM
Section filter : SC3-30
Return line filter : T1 F2-08-B25 (Hydro line) Level Gauge LG-03 (Hydro line)
Working pressure : 90 kg/Cm
Electrical Control System
Destined for electrical controlling of line equipment
Fabricated sheet metal enclosure
Easy accessibly mounting of components
PLC control mechanism system for high accuracy in length control.
Front panel with operator interface, push button panel, operating & indicators.
For ease of operation operator pendent can be at difference desired place on line.
Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console.
HMI 7”x7” Touch colour screen Variable frequency Drive Encoder Contactor, relay, smps,
Auto single phase system auto machine length counting
