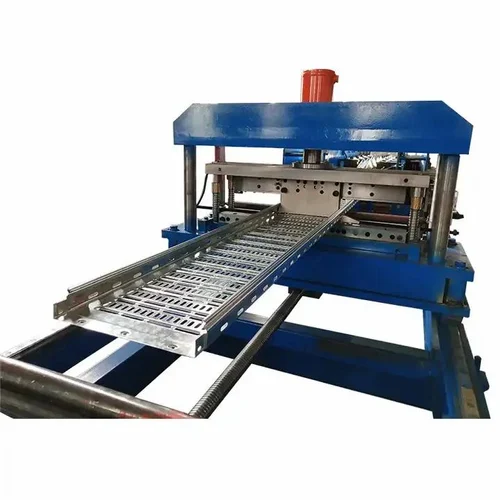

Cabel Tray Roll Forming Machine

cable-tray-roll-forming-machine
NameNo
1. Decoiler Hydraulic1 Set.
2. Shearing1 Nos.
3. Forming Machine1 Set.
4. PLC Control Panel1 Nos.
5. Run Out Table1 Nos.
6. Belt Conveyor1 Nos
7. Leveller1 Nos
8. Punching Press 150 Ton1 Nos
9. Hydraulic Power Pack[10HP]1Nos
1. Decoiler
Max. Coil Width Can Be Loaded 1000 MM
Inner Diameter460 To 510 MM
Coil Diameter1000 M
Control SystemHydraulic
Max. Loading Capacity 5000KGS.
2. Shearing
Capacity1.5 MM To 3 MM.
Cutting SystemMechanical.
Cutting Blade MaterialD2.
Fabricated Heavy Duty Base Frame.
High Speed Operation.
3.Forming Machine
Material Thickness 1.5MM To 3 MM
Material Width 1000 MM
Station 14 Nos
Shaft Diameter 70 MM
Shaft Material EN-8
Roller Material EN-31
Stand Plate Fabricated
Bottom Frame 8" I-beam.
Drive System Gear
Main Motor Power 15 HP
Voltage 440V-50 HZ 3 Phase
4. Control Penal
Type PLC Frequency Control System With Touch Screen.
Length Error Tank
Capacity 80-liter.
Motor 10HP 3Face 1400 RPM
Working Pressure 90 KG/Cm2
5. Run Out Table
Type Manual
Nos 01 Nos

Terms & Conditions

[1] Warranty :-

The Machine is covered with 1 year warranty From the date of Machine Dispatch against any Manufacturing defect / Poor workmanship. Warranty provide only On Manufacturing Defect of Machine Not cover normal wear and tear, Rubber and electrical/electronic Components and damage due to iproper handling/usage of the machine.

[2] Installation & Commissioning :-

If Bayer Needs Our Technician to Go to Your Local Factory Arrange Round Trip Tickets, Food & Hotel Everyday.

[3] Hydraulic Oil :-

Hydraulic Oil Is Not In Scope With Machine.

[4] Demonstration :-

 If Working Trial of The Machine is Designed  the Material Required For Such ATrial Will Have To Be Supplied by The Bayer as free Issue Material At Our Work[Before One Month of Due Delivery Period]

[5] Freight :-

Transportation Charges Extra as Actual.

[6] Risk & Responsibilities :-

A. RESPONSIBILITY

Our Responsibility Ceases On Handing Over The Goods To The Transport Carrier.

B. CANCELATION OF ORDER

Order One Placed Cannot Be Cancelled Without Sellers Consent In Wring. The Seller Reserves The Right To Adjust Allor Part Of The Advance Paid By The Buyer Towards Cost Incurred By The Seller Till Acceptance Of The Cancellation.

C. CONSEQUENTIAL LOSS

The Seller Shall Not Be Liable For Any Consequential Or Direct Indirect Loss  Or Damage Out Of Or Connected With This Offer And Subsequent Order.
