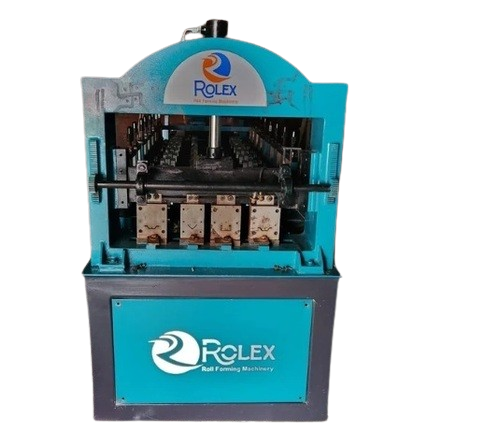

4 in 1 POP Channel Forming Machine
| Main roll forming machine: | |
|---|---|
| Number of forming stands | 9 stand |
| Outer diameter of shaft | 66 mm |
| Main motor power | 5HP |
| Ultra unit motor power | 2 Hp |
| The forming speed | 10-12 M/min |
| Roller Material | EN-31 |
| Motor | ABB, Crompton, Godrej |
| Voltage | 440V-50HZ – 3 Phase |
| Cutting system | hydraulic , automatic cutting |
| Weight of coil | 250kg max |
| Length of the machine | 12-13 ft |
| Weight of machine Approx | 3 ton approx. |
The Equipment Includes
De-Coiler 1 (Manual)
Main roll forming machine (9 stand + 4Profile)
Hydraulic Cutting unit
Electrical control system
Hydraulic power pack
| Technical Specifications And Details | |
|---|---|
| De-Coiler | 1 (Manual) |
| Weight of the machine | 700 kg Approx |
| Capacity | 250 kg max |
| Coil id | 510 mm |
| Max coil width can be loaded | 500 mm |
| Min coil width can be loaded | 50 mm |
| Hydraulic power pack | |
|---|---|
| Tank fabricated capacity | 60 ltr. |
| Motor 2 HP ,3 phase, 1440 RPM, flange, ABB Direction control valve | NG-06-24v-DC |
| Pump | 1P series 27 LPM |
| Section filter | SC3-30 |
| Return line filter : Level Gauge LG-03 (Hydro line) | T1 F2-08-B25 (Hydro line) |
| Working pressure | 90 kg/Cm |
Electrical Control System
Destined for electrical controlling of line equipment
Fabricated sheet metal enclosure
Easy accessibly mounting of components
PLC control mechanism system for high accuracy in length control.
Front panel with operator interface, push button panel, operating & indicators.
For ease of operation operator pendent can be at difference desired place on line.
Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console.
HMI 7”x7” Touch colour screen Variable frequency Drive Encoder
Contractor, relay, smps,
Auto single phase system auto machine length counting
